  • TUNGALOY PDQNR2525 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

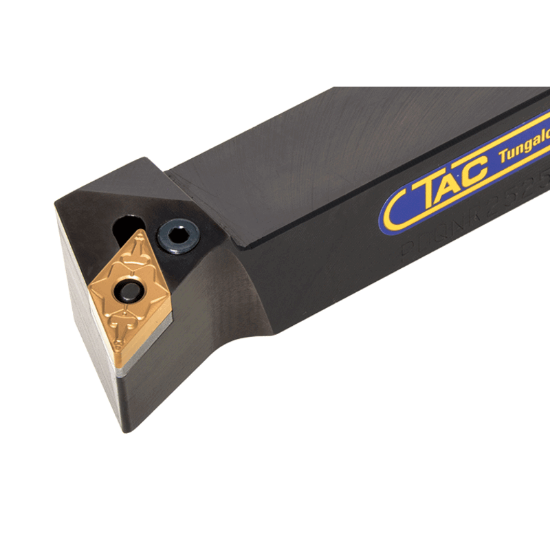

Picture of TUNGALOY PDQNR2525 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY PDQNR2525 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

ANSI: PDQNR2525

ISO: PDQNR2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805642
Delivery date: 3-5 days
$149.50

Important Notes

Neg,Q/H style, 45deg Approach

Details

Lever lock type toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 107.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 12 "43"
Overall Len 5.9055 150.00MM
Clearance Angle 16.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Insert Style DN
