  • TUNGALOY PDJNR2525M1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

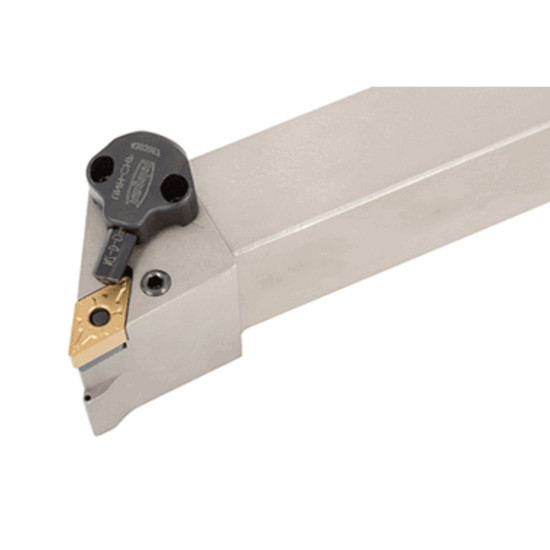

Picture of TUNGALOY PDJNR2525M1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY PDJNR2525M1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: PDJNR2525M1104-CHP

ISO: PDJNR2525M1104-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718751
Delivery date: 3-5 days
$308.50

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**1104..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 93°
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Inter/Extern External
