  • TUNGALOY PDJNR2020K15E Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.787 Shank

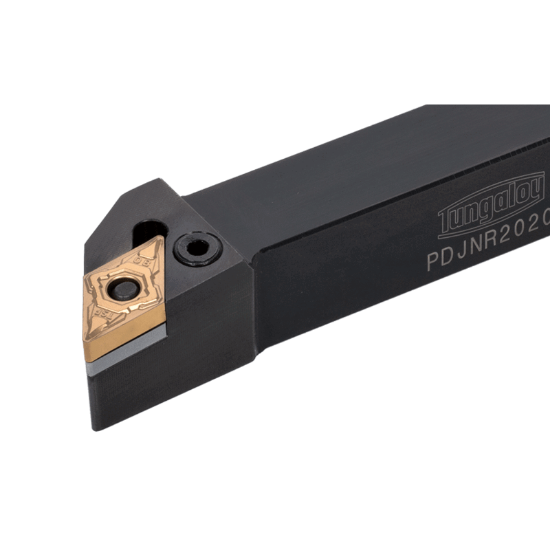

Picture of TUNGALOY PDJNR2020K15E Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.787 Shank

TUNGALOY PDJNR2020K15E Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.787 Shank

ANSI: PDJNR2020K15E

ISO: PDJNR2020K15E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805632
Delivery date: 3-5 days
$85.30

Important Notes

Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 27.0°
Overall Len 4.9213 125.00MM
Shank/Pilot Dia 0.7874 20.00MM
Lead Angle 93°
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Hand R/L Right
Insert Style DN
