  • TUNGALOY PDJNR2020K1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.787 Shank

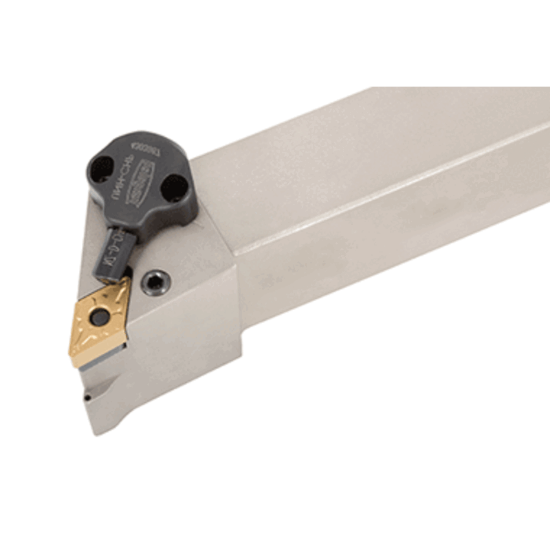

Picture of TUNGALOY PDJNR2020K1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.787 Shank

TUNGALOY PDJNR2020K1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.787 Shank

ANSI: PDJNR2020K1104-CHP

ISO: PDJNR2020K1104-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755202
Delivery date: 3-5 days
$274.10

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**1104..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Overall Len 4.9213 125.00MM
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Cutting & Machining Properties
Insert Style DN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
