  • TUNGALOY PDJNR164-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 1.000 Shank

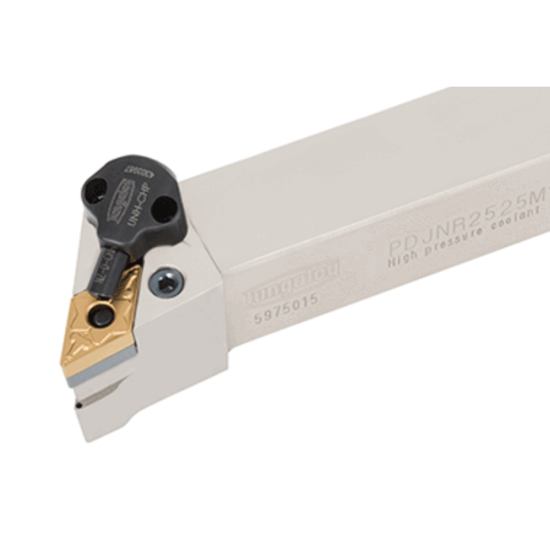

Picture of TUNGALOY PDJNR164-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY PDJNR164-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: PDJNR164-CHP

ISO: PDJNR164-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730831
Delivery date: 3-5 days
$308.50

Important Notes

Neg,J style, 93deg Approach

Details

Lever lock type toolholder for negative 55deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 27.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Insert Style DN
