  • TUNGALOY PDJNR124-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

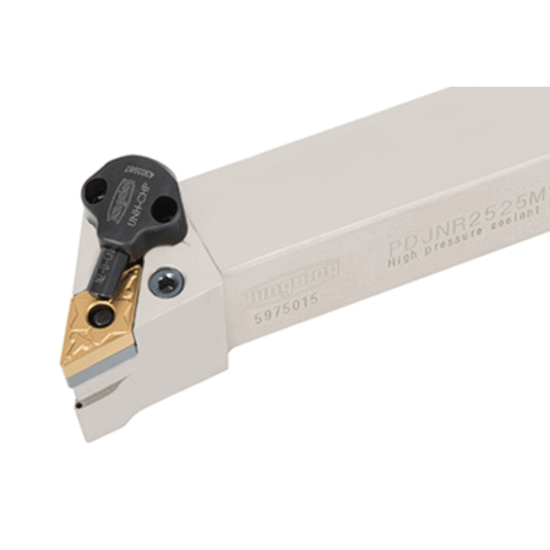

Picture of TUNGALOY PDJNR124-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY PDJNR124-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: PDJNR124-CHP

ISO: PDJNR124-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755235
Delivery date: 3-5 days
$274.10

Important Notes

Neg,J style, 93deg Approach

Details

Lever lock type toolholder for negative 55deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Clearance Angle 27.0°
Insert Size Ic 12 "43"
Overall Len 4.5000 114.30MM
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Right
Inter/Extern External
