  • TUNGALOY PDJNR1233 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.750 Shank

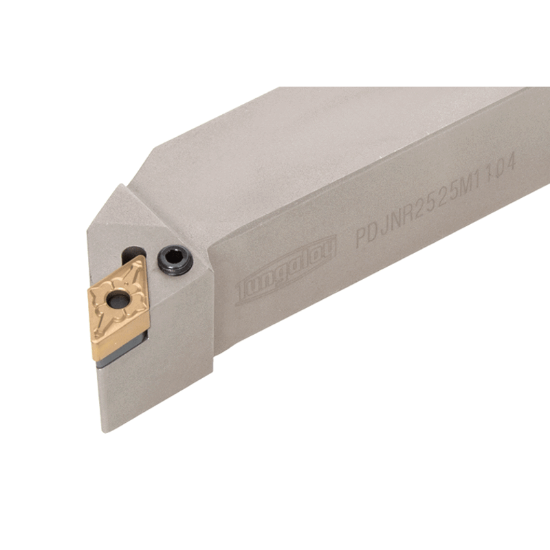

Picture of TUNGALOY PDJNR1233 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY PDJNR1233 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: PDJNR1233

ISO: PDJNR1233

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6711293
Delivery date: 3-5 days
$85.30

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**33...

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 4.5000 114.30MM
Lead Angle 93°
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Insert Style DN
Hand R/L Right
