  • TUNGALOY PDJNR1033 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.625 Shank

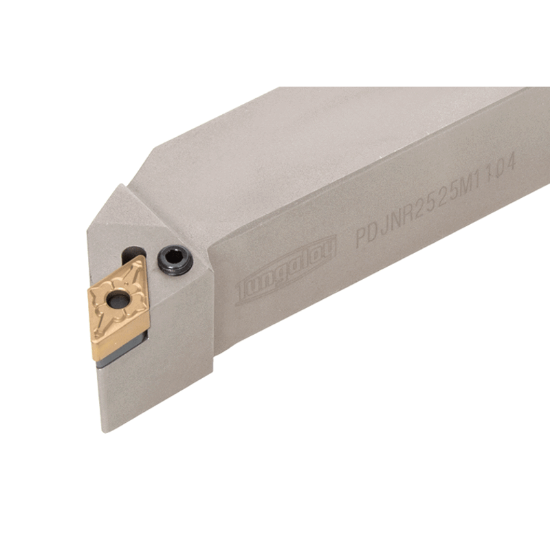

Picture of TUNGALOY PDJNR1033 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY PDJNR1033 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: PDJNR1033

ISO: PDJNR1033

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6711291
Delivery date: 3-5 days
$80.75

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**33...

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 93°
Overall Len 4.0000 101.60MM
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style DN
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
