  • TUNGALOY PDJNL124-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

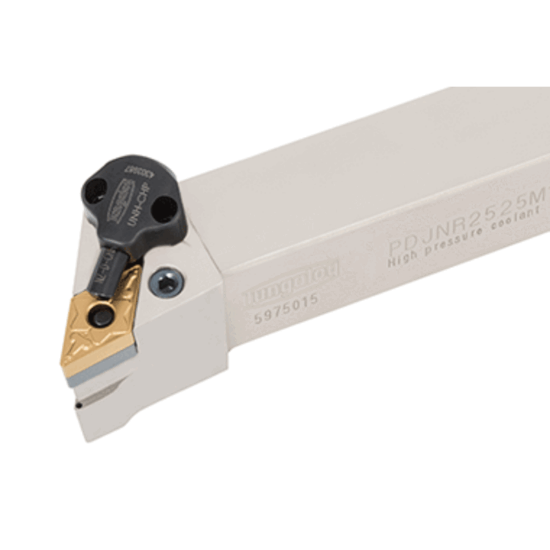

Picture of TUNGALOY PDJNL124-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY PDJNL124-CHP Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: PDJNL124-CHP

ISO: PDJNL124-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755236
Delivery date: 3-5 days
$274.10

Important Notes

Neg,J style, 93deg Approach

Details

Lever lock type toolholder for negative 55deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Clearance Angle 27.0°
Overall Len 4.5000 114.30MM
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Insert Style DN
Inter/Extern External
