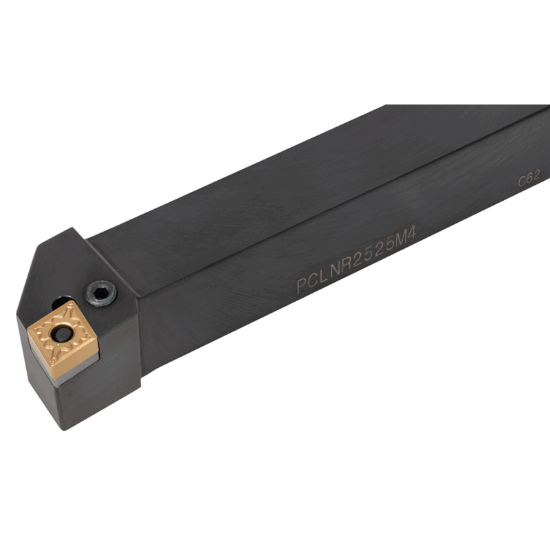

Picture of TUNGALOY PCLNR2525M4 Stick Tool 80.0° Insert Steel Square 0.984 Shank

TUNGALOY PCLNR2525M4 Stick Tool 80.0° Insert Steel Square 0.984 Shank

ANSI: PCLNR2525M4

ISO: PCLNR2525M4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805616
Delivery date: 3-5 days
$96.00

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Application Ext.Turning
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 5.9055 150.00MM
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
Hand R/L Right
