  • TUNGALOY PCLNR2525M16E Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

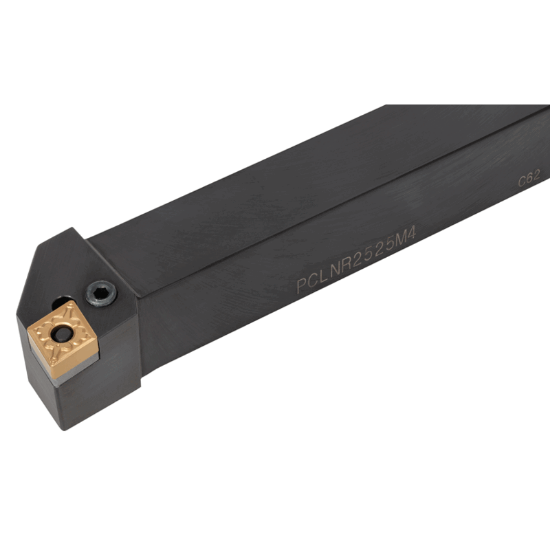

Picture of TUNGALOY PCLNR2525M16E Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

TUNGALOY PCLNR2525M16E Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

ANSI: PCLNR2525M16E

ISO: PCLNR2525M16E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805615
Delivery date: 3-5 days
$116.55

Important Notes

Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Lead Angle 95°
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 16 "54"
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
