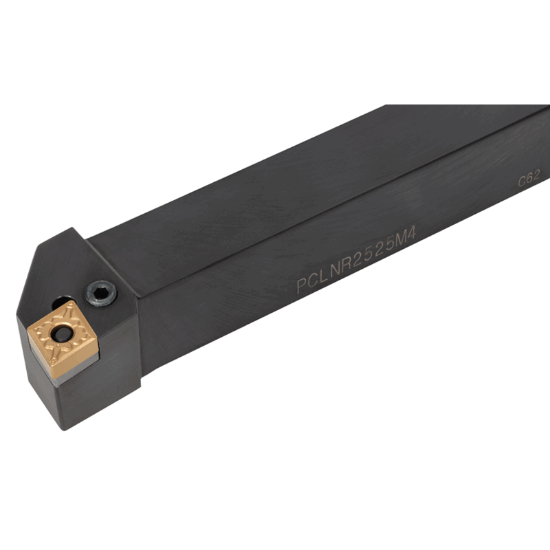

Picture of TUNGALOY PCLNR2525M12E Stick Tool 80.0° Steel Square 0.984 Shank

TUNGALOY PCLNR2525M12E Stick Tool 80.0° Steel Square 0.984 Shank

ANSI: PCLNR2525M12E

ISO: PCLNR2525M12E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6814278
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 12 "43"
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
