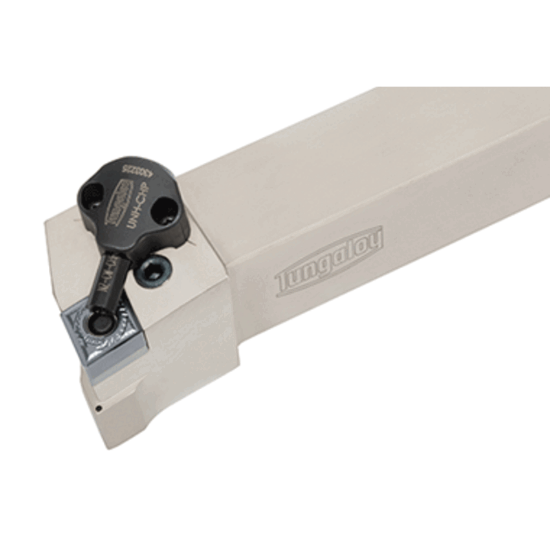

Picture of TUNGALOY PCLNR2020K12-CHP Stick Tool 80.0° Insert Steel Square 0.787 Shank

TUNGALOY PCLNR2020K12-CHP Stick Tool 80.0° Insert Steel Square 0.787 Shank

ANSI: PCLNR2020K12-CHP

ISO: PCLNR2020K12-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755200
Delivery date: 3-5 days
$274.10

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.9213 125.00MM
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 12 "43"
Lead Angle 95°
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CN
Inter/Extern External
