  • TUNGALOY PCLNR1633-CHP Stick Tool 80.0° Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

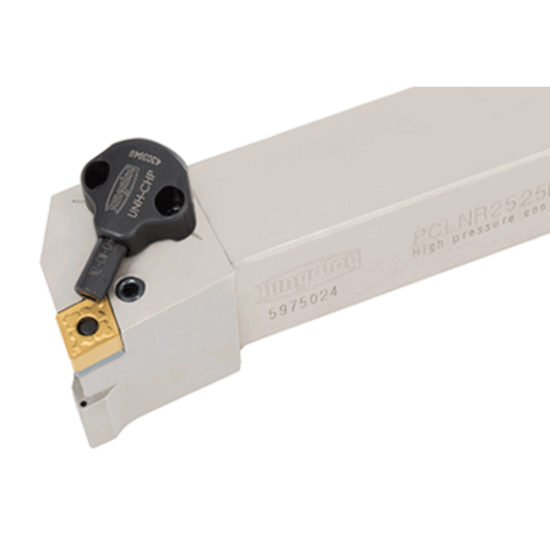

Picture of TUNGALOY PCLNR1633-CHP Stick Tool 80.0° Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

TUNGALOY PCLNR1633-CHP Stick Tool 80.0° Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

ANSI: PCLNR1633-CHP

ISO: PCLNR1633-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730833
Delivery date: 3-5 days
$308.50

Important Notes

EcoTurn Toolholders Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts CN**33..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 95°
Insert Size Ic 09 "32"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
