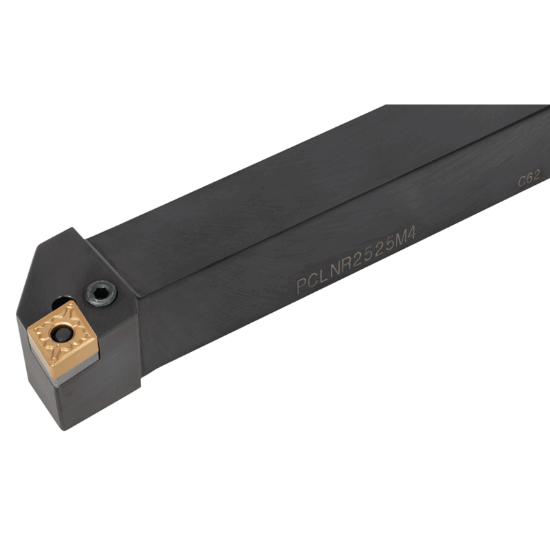

Picture of TUNGALOY PCLNL2525M4 Stick Tool 80.0° Insert Steel Square 0.984 Shank

TUNGALOY PCLNL2525M4 Stick Tool 80.0° Insert Steel Square 0.984 Shank

ANSI: PCLNL2525M4

ISO: PCLNL2525M4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805604
Delivery date: 3-5 days
$96.00

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Overall Len 5.9055 150.00MM
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 12 "43"
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
Inter/Extern External
