  • TUNGALOY PCLNL2525M0904-CHP Stick Tool 80.0° Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 0.984 Shank

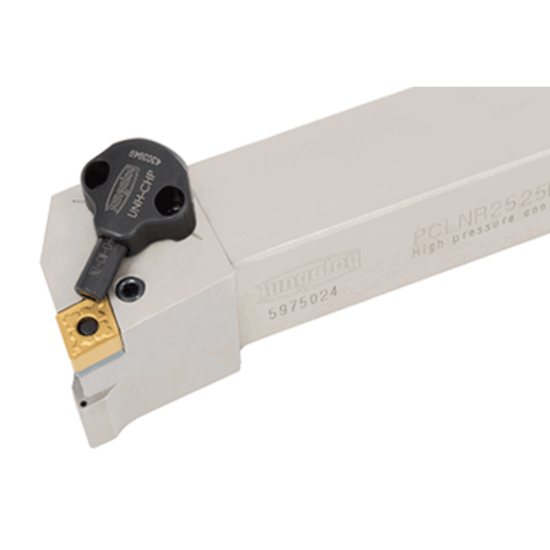

Picture of TUNGALOY PCLNL2525M0904-CHP Stick Tool 80.0° Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 0.984 Shank

TUNGALOY PCLNL2525M0904-CHP Stick Tool 80.0° Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 0.984 Shank

ANSI: PCLNL2525M0904-CHP

ISO: PCLNL2525M0904-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718748
Delivery date: 3-5 days
$308.50

Important Notes

EcoTurn Toolholders Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts CN**0904..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Application Ext.Turning
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.9055 150.00MM
Insert Size Ic 09 "32"
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 95°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
Hand R/L Left
