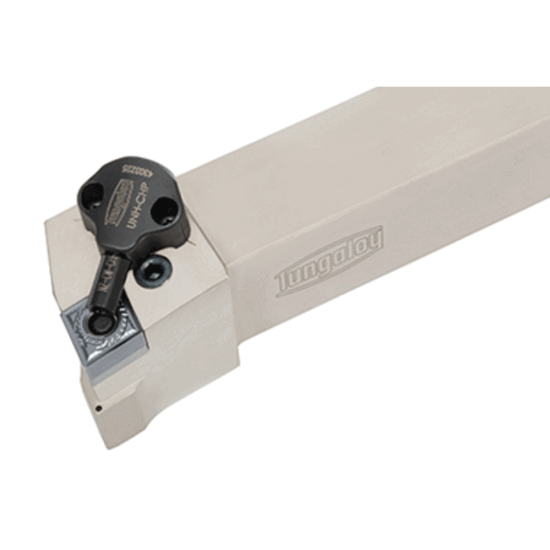

Picture of TUNGALOY PCLNL164-CHP Stick Tool 80.0° Insert Steel Square 1.000 Shank

TUNGALOY PCLNL164-CHP Stick Tool 80.0° Insert Steel Square 1.000 Shank

ANSI: PCLNL164-CHP

ISO: PCLNL164-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730830
Delivery date: 3-5 days
$308.50

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Insert Size Ic 12 "43"
Lead Angle 95°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
Inter/Extern External
