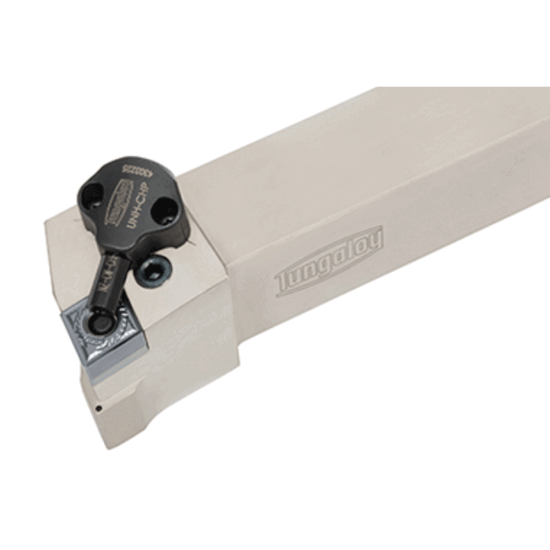

Picture of TUNGALOY PCLNL124-CHP Stick Tool 80.0° Insert Steel Square 0.750 Shank

TUNGALOY PCLNL124-CHP Stick Tool 80.0° Insert Steel Square 0.750 Shank

ANSI: PCLNL124-CHP

ISO: PCLNL124-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755232
Delivery date: 3-5 days
$274.10

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
