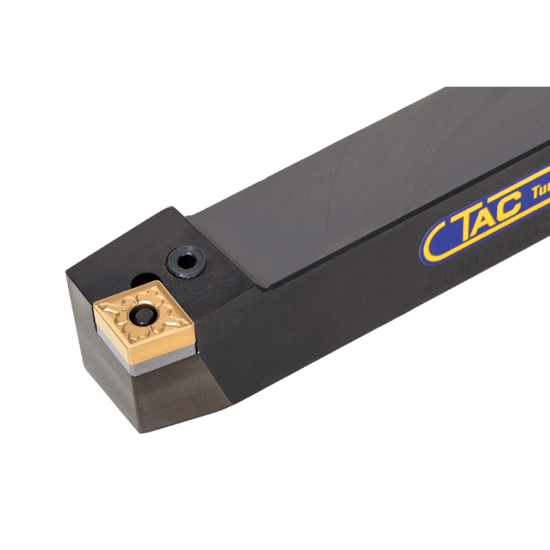

Picture of TUNGALOY PCBNL2525 Stick Tool 80.0° Insert Steel Square 0.984 Shank

TUNGALOY PCBNL2525 Stick Tool 80.0° Insert Steel Square 0.984 Shank

ANSI: PCBNL2525

ISO: PCBNL2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805589
Delivery date: 3-5 days
$96.00

Details

Lever lock type toolholder with 75deg approach angle, for negative 80 deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Lead Angle 75°
Overall Len 5.9055 150.00MM
Insert Size Ic 12 "43"
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
Inter/Extern External
