  • TUNGALOY MVQNR2525M16 Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

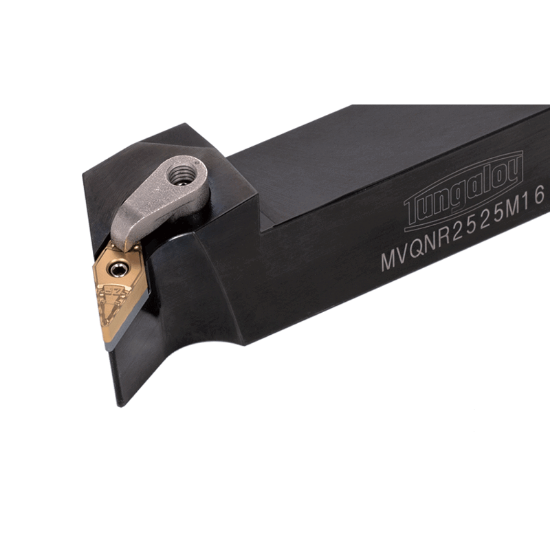

Picture of TUNGALOY MVQNR2525M16 Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY MVQNR2525M16 Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

ANSI: MVQNR2525M16

ISO: MVQNR2525M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805510
Delivery date: 3-5 days
$149.25

Important Notes

Neg,Q/H style, 45deg Approach

Details

Multi-clamp toolholder with 117.5deg approach angle, for negative 35deg, 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Application Ext.Turning
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 117.5°
Machine Side Connection Size 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Clearance Angle 25.0°
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
