  • TUNGALOY MVJNR2525M16 Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

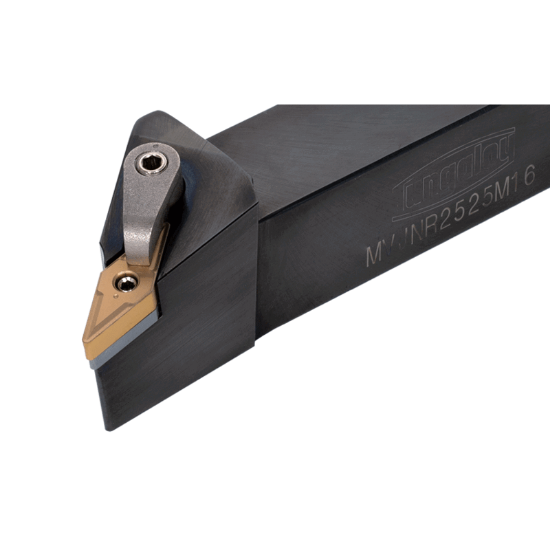

Picture of TUNGALOY MVJNR2525M16 Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY MVJNR2525M16 Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: MVJNR2525M16

ISO: MVJNR2525M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805503
Delivery date: 3-5 days
$149.25

Important Notes

Neg,J style, 93deg Approach

Details

Multi-clamp toolholder with 93deg approach angle, for negative 35deg, 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 16 "33"
Lead Angle 93°
Overall Len 5.9055 150.00MM
Clearance Angle 50.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VN
