  • TUNGALOY MDPNN2525M15 Stick Tool 55.0° Insert Neg,P style, 62.5deg Approach , Steel Square 0.984 Shank
Picture of TUNGALOY MDPNN2525M15 Stick Tool 55.0° Insert Neg,P style, 62.5deg Approach , Steel Square 0.984 Shank

TUNGALOY MDPNN2525M15 Stick Tool 55.0° Insert Neg,P style, 62.5deg Approach , Steel Square 0.984 Shank

ANSI: MDPNN2525M15

ISO: MDPNN2525M15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805294
Delivery date: 3-5 days
$149.25

Important Notes

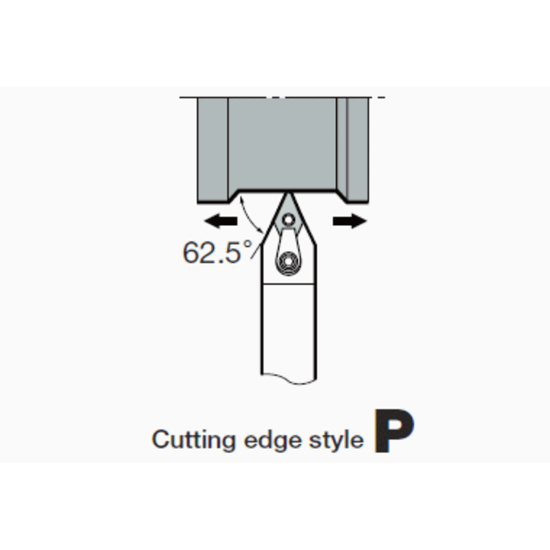

Neg,P style, 62.5deg Approach

Details

Multi-clamp toolholder with 62.5deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 5.9055 150.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 12 "43"
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 62.5°
Shank/Pilot Dia 0.9843 25.00MM
Clearance Angle 60.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
Hand R/L Neutral
