  • TUNGALOY MDJNR2525M15 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

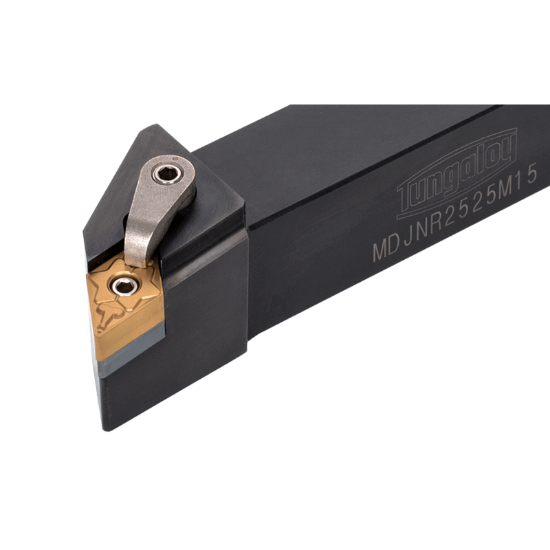

Picture of TUNGALOY MDJNR2525M15 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY MDJNR2525M15 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: MDJNR2525M15

ISO: MDJNR2525M15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805291
Delivery date: 3-5 days
$149.25

Important Notes

Neg,J style, 93deg Approach

Details

Multi-clamp toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 93°
Overall Len 5.9055 150.00MM
Clearance Angle 27.0°
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Tool Material Steel
Insert Size Ic 12 "43"
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Right
