  • TUNGALOY MCTRCH15.00XM25-25 15mm Drill body for cross holes for lathes and machining centers, L/D = 25. For Drill ing cross holes.

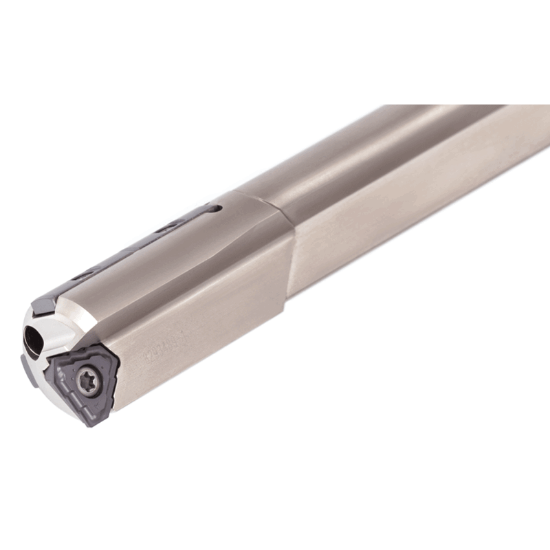

Picture of TUNGALOY MCTRCH15.00XM25-25 15mm Drill body for cross holes for lathes and machining centers, L/D = 25. For Drill ing cross holes.

TUNGALOY MCTRCH15.00XM25-25 15mm Drill body for cross holes for lathes and machining centers, L/D = 25. For Drill ing cross holes.

ISO: MCTRCH15.00XM25-25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4848615
Delivery date: 3-5 days
$959.05

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 1
Dia Deep 25.0XD
Machine Side Connection Size 0.9843 25.00MM
Flute Length 15.8270 402.01MM
Cutter Dia 0.5906 15.00MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Overall Len 19.5276 496.00MM
Cut Dia Min 0.5906 15.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
