  • TUNGALOY MCTR35.00XFM40-15 35mm Drill body for lathes and machining centers, L/D = 15

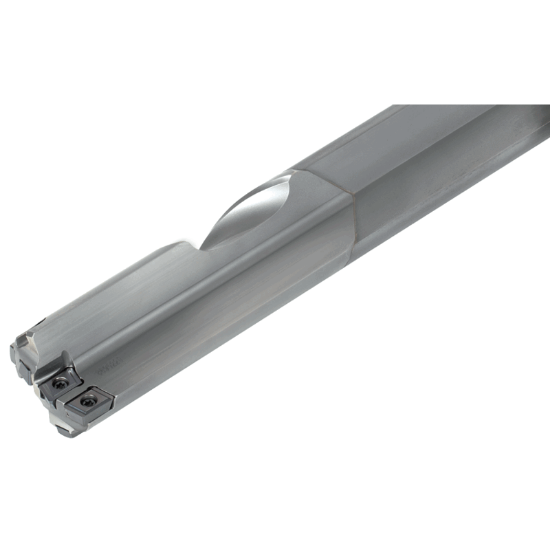

Picture of TUNGALOY MCTR35.00XFM40-15 35mm Drill body for lathes and machining centers, L/D = 15

TUNGALOY MCTR35.00XFM40-15 35mm Drill body for lathes and machining centers, L/D = 15

ISO: MCTR35.00XFM40-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4846291
Delivery date: 3-5 days
$1,277.10

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Overall Len 26.5787 675.10MM
Dia Deep 15.0XD
Cut Dia Min 1.3780 35.00MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 1
Machine Side Connection Size 1.5748 40.00MM
Cutter Dia 1.3780 35.00MM
Tool Material Steel
Flute Length 20.7910 528.09MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
