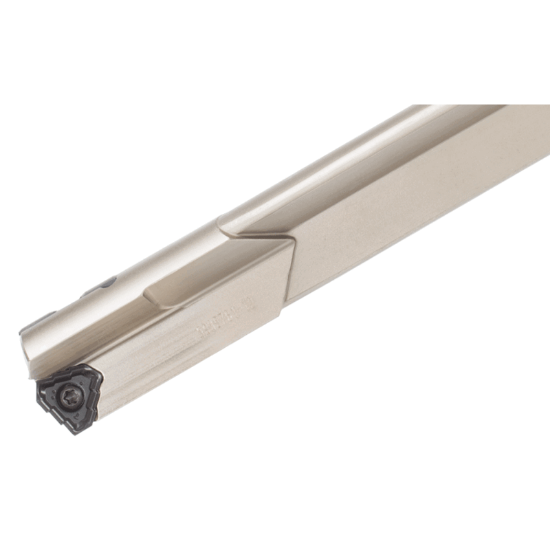

Picture of TUNGALOY MCTR17.45XU25.4A-25 0.687" Drill body for lathes and machining centers, L/D = 25

TUNGALOY MCTR17.45XU25.4A-25 0.687" Drill body for lathes and machining centers, L/D = 25

ISO: MCTR17.45XU25.4A-25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4846644
Delivery date: 3-5 days
$807.55

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.6875 17.46MM - 11/16
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.0000 25.40MM
Flute Length 17.8030 452.20MM
Dia Deep 25.0XD
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 21.5830 548.21MM
Flutes/Inserts 1
Cutter Dia 0.6875 17.46MM - 11/16
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Mold Yes
Job Shop Yes
