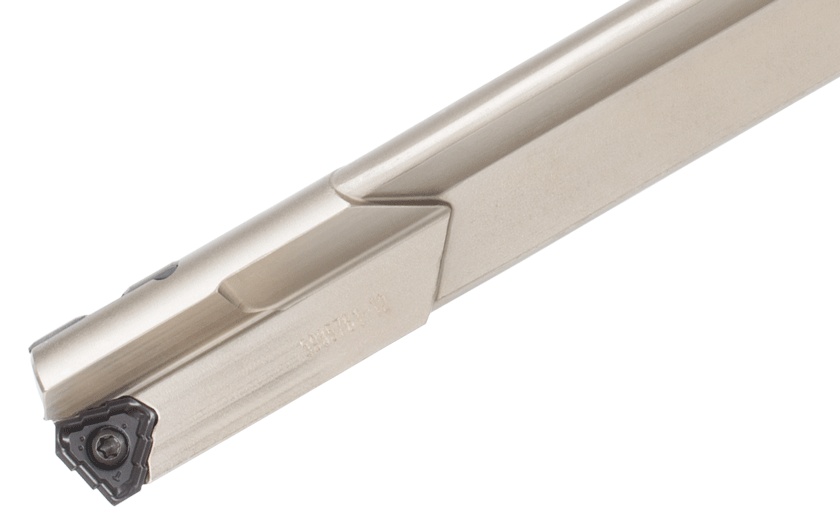

Picture of Tungaloy MCTR17.45XU25.4A-25 0.687" Drill body for lathes and machining centers, L/D = 25

Tungaloy MCTR17.45XU25.4A-25 0.687" Drill body for lathes and machining centers, L/D = 25

Part Number: TUN4846644 ISO: MCTR17.45XU25.4A-25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1131456
Vendor: Sussex Tool and Supply
$882.43
TUNGALOY TUN4846644 Gun Drill,Indexable Drill Weldon 1.0000 0.6875 17.46MM - 11/16Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Drill, Gun Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 21.5830 548.21MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Tool Dia 0.6875 17.46MM - 11/16
Type Of Tool Drill
Flute Length 17.8030 452.20MM
Cut Dia Min 0.6875 17.46MM - 11/16
Dia Deep 25.0x Dia
Gun Drill Component Multi Insert Drill
