  • TUNGALOY MCTR16.00XM25A-15 16mm Drill body for lathes and machining centers, L/D = 15

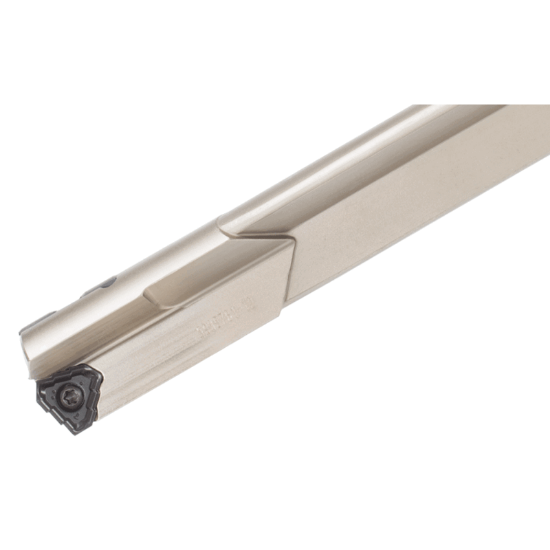

Picture of TUNGALOY MCTR16.00XM25A-15 16mm Drill body for lathes and machining centers, L/D = 15

TUNGALOY MCTR16.00XM25A-15 16mm Drill body for lathes and machining centers, L/D = 15

ISO: MCTR16.00XM25A-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4803012
Delivery date: 3-5 days
$768.70

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 1
Cutter Dia 0.6299 16.00MM
Dia Deep 15.0XD
Cut Dia Min 0.6299 16.00MM
Flute Length 10.1260 257.20MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 13.8661 352.20MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
