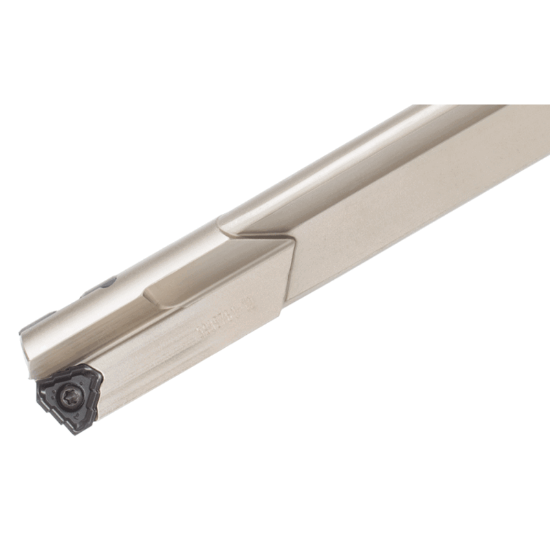

Picture of TUNGALOY MCTR12.50XM20-25 12.5mm Drill body for lathes and machining centers, L/D = 25

TUNGALOY MCTR12.50XM20-25 12.5mm Drill body for lathes and machining centers, L/D = 25

ISO: MCTR12.50XM20-25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4848054
Delivery date: 3-5 days
$728.85

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.7874 20.00MM
Cutter Dia 0.4921 12.50MM
Dia Deep 25.0XD
Cut Dia Min 0.4921 12.50MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.7874 20.00MM
Overall Len 16.0551 407.80MM
Flutes/Inserts 1
Flute Length 12.8660 326.80MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
