  • TUNGALOY LPTC16M080B32.0L076R04 Milling Cutter 90.0°, Corn Cob 3.150 Cutter Diameter Shell Arbor 1.2598 3.937 OAL 20 Flute

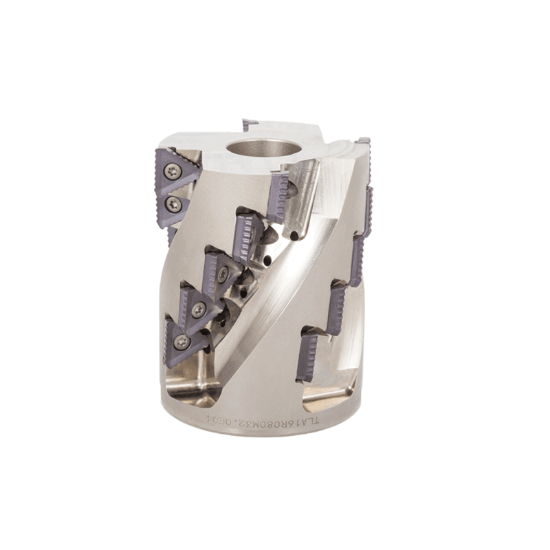

Picture of TUNGALOY LPTC16M080B32.0L076R04 Milling Cutter 90.0°, Corn Cob 3.150 Cutter Diameter Shell Arbor 1.2598 3.937 OAL 20 Flute

TUNGALOY LPTC16M080B32.0L076R04 Milling Cutter 90.0°, Corn Cob 3.150 Cutter Diameter Shell Arbor 1.2598 3.937 OAL 20 Flute

ANSI: LPTC16M080B32.0L076R04

ISO: LPTC16M080B32.0L076R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735571
Delivery date: 3-5 days
$1,801.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Side Milling, Long Edge Milling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 3.1500 80.01MM
Depth Of Cut Max 2.4020
Flutes/Inserts 20
Insert Size Ic 16
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Insert Style TC
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 4352055
