  • TUNGALOY LPTC16M063B27.0L061R03 Milling Cutter 90.0°, Corn Cob 2.480 Cutter Diameter Shell Arbor 0.6300 3.346 OAL 12 Flute

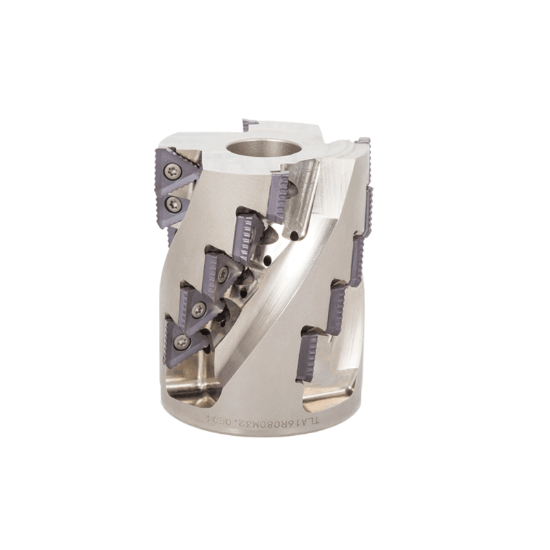

Picture of TUNGALOY LPTC16M063B27.0L061R03 Milling Cutter 90.0°, Corn Cob 2.480 Cutter Diameter Shell Arbor 0.6300 3.346 OAL 12 Flute

TUNGALOY LPTC16M063B27.0L061R03 Milling Cutter 90.0°, Corn Cob 2.480 Cutter Diameter Shell Arbor 0.6300 3.346 OAL 12 Flute

ANSI: LPTC16M063B27.0L061R03

ISO: LPTC16M063B27.0L061R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735570
Delivery date: 3-5 days
$1,242.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 2.9921
Flutes/Inserts 12
Cutter Dia 2.4800 62.99MM
Insert Size Ic 16
Cut Dia Min 2.4800 62.99MM
Overall Len 3.3465 85.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 4352055
