  • TUNGALOY JTTLNL1616X16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

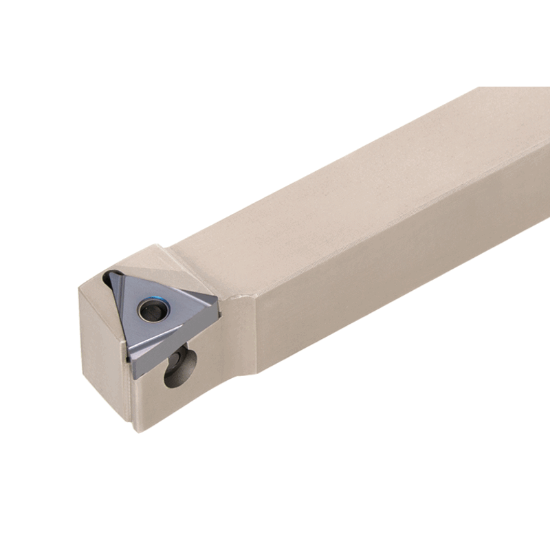

Picture of TUNGALOY JTTLNL1616X16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JTTLNL1616X16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JTTLNL1616X16

ISO: JTTLNL1616X16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733997
Delivery date: 3-5 days
$117.45

Important Notes

Neg,L style, 95deg Approach

Details

No-offset back-clamp toolholder with 95deg approach angle, for negative 60deg triangular inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Clearance Angle 11.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape Triangle
