  • TUNGALOY JTTLNL1216X16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

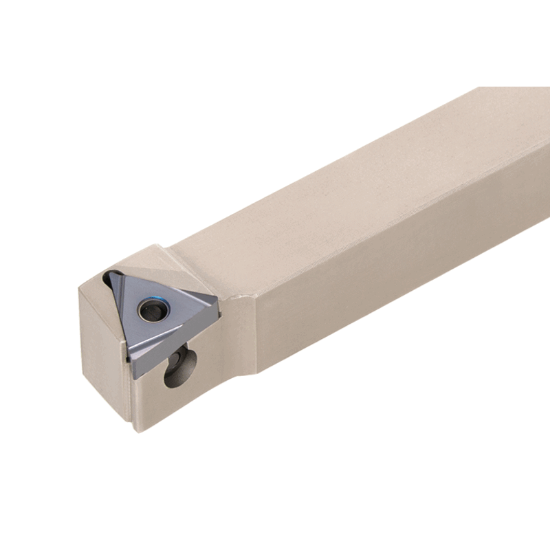

Picture of TUNGALOY JTTLNL1216X16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JTTLNL1216X16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JTTLNL1216X16

ISO: JTTLNL1216X16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6716241
Delivery date: 3-5 days
$117.45

Important Notes

Neg,L style, 95deg Approach

Details

No-offset back-clamp toolholder with 95deg approach angle, for negative 60deg triangular inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Clearance Angle 11.5°
Lead Angle 95°
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Hand R/L Left
Insert Style TN
