  • TUNGALOY JTTLNL1216F16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

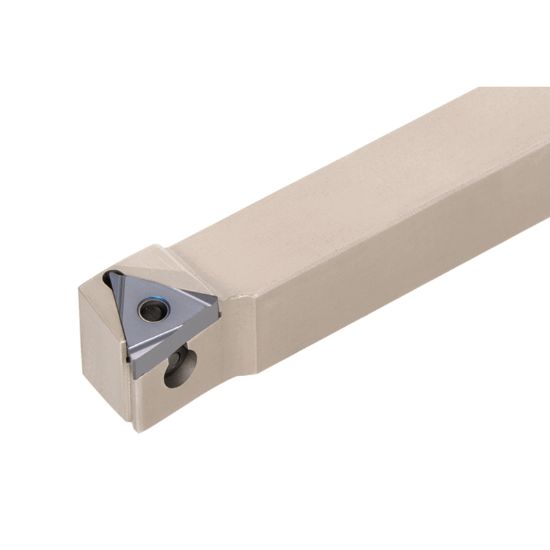

Picture of TUNGALOY JTTLNL1216F16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JTTLNL1216F16 Swiss Stick Tool Triangle Insert Neg,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JTTLNL1216F16

ISO: JTTLNL1216F16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6716265
Delivery date: 3-5 days
$117.45

Important Notes

Neg,L style, 95deg Approach

Details

No-offset back-clamp toolholder with 95deg approach angle, for negative 60deg triangular inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 3.3465 85.00MM
Clearance Angle 11.5°
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
