  • TUNGALOY JTTANR1616K16 Swiss Stick Tool Triangle Insert Neg,A style, 91deg Approach , Steel Square 0.629 Shank

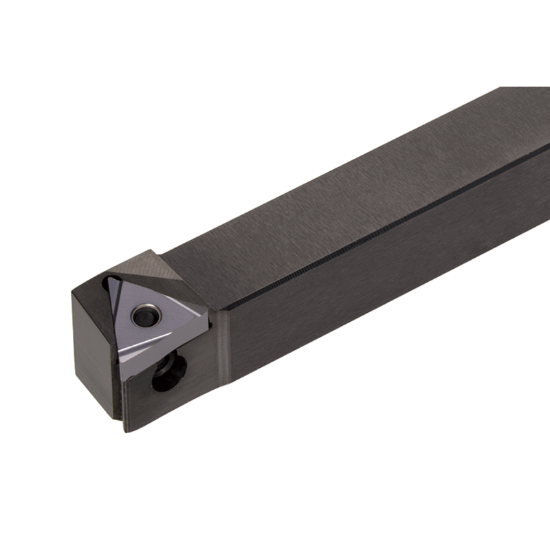

Picture of TUNGALOY JTTANR1616K16 Swiss Stick Tool Triangle Insert Neg,A style, 91deg Approach , Steel Square 0.629 Shank

TUNGALOY JTTANR1616K16 Swiss Stick Tool Triangle Insert Neg,A style, 91deg Approach , Steel Square 0.629 Shank

ANSI: JTTANR1616K16

ISO: JTTANR1616K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821047
Delivery date: 3-5 days
$117.45

Important Notes

Neg,A style, 91deg Approach

Details

Back clamp toolholder for small lathe with 91deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16 "33"
Lead Angle 91°
Overall Len 4.9213 125.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Right
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
