  • TUNGALOY JTTANL1616K16 Swiss Stick Tool Triangle Insert Neg,A style, 91deg Approach , Steel Square 0.629 Shank

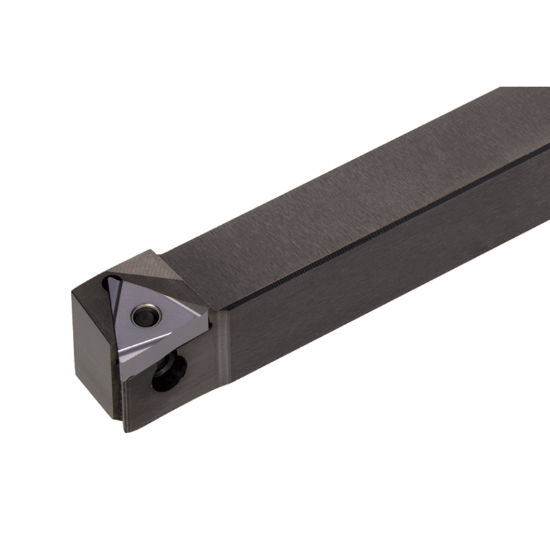

Picture of TUNGALOY JTTANL1616K16 Swiss Stick Tool Triangle Insert Neg,A style, 91deg Approach , Steel Square 0.629 Shank

TUNGALOY JTTANL1616K16 Swiss Stick Tool Triangle Insert Neg,A style, 91deg Approach , Steel Square 0.629 Shank

ANSI: JTTANL1616K16

ISO: JTTANL1616K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821045
Delivery date: 3-5 days
$117.45

Important Notes

Neg,A style, 91deg Approach

Details

Back clamp toolholder for small lathe with 91deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Lead Angle 91°
Overall Len 4.9213 125.00MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
