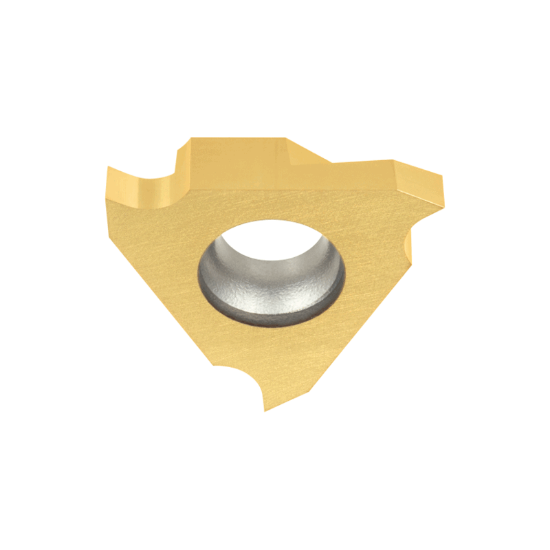

Picture of TUNGALOY JTGR3125 J9530 On Edge Grooving, Cut Off Insert TiN 0.002 Corner Radius 0.049 Wide

TUNGALOY JTGR3125 J9530 On Edge Grooving, Cut Off Insert TiN 0.002 Corner Radius 0.049 Wide

ANSI: JTGR3125 J9530

ISO: JTGR3125 J9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723943
Delivery date: 3-5 days
$20.28

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

File Downloads

DXFSTPSTPL

Grade and Coating Description

suitable for small-part machining, For Swiss lathes.

Products specifications
Attribute name Attribute value
General Product Information
Application Grooving & Parting Insert
Package Size 10
Insert Type Positive
Grade J9530
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Coating TiN
Dimensional Specifications
Insert Size Ic 3
Corner Radius 0.0020 0.05MM
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting Width 0.0490 1.24MM
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style JT
