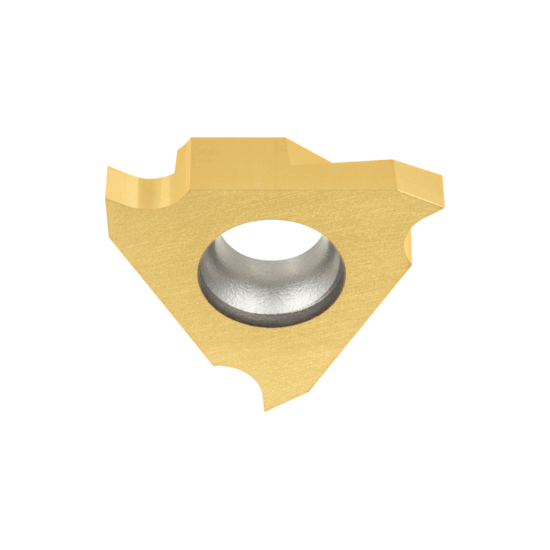

Picture of TUNGALOY JTGR3100 J9530 On Edge Grooving, Cut Off Insert TiN 0.002 Corner Radius 0.039 Wide

TUNGALOY JTGR3100 J9530 On Edge Grooving, Cut Off Insert TiN 0.002 Corner Radius 0.039 Wide

ANSI: JTGR3100 J9530

ISO: JTGR3100 J9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723942
Delivery date: 3-5 days
$20.28

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

File Downloads

DXFSTPSTPL

Grade and Coating Description

suitable for small-part machining, For Swiss lathes.

Products specifications
Attribute name Attribute value
General Product Information
Grade J9530
Package Size 10
Insert Application General Purpose
Shipping State Illinois
Application Grooving & Parting Insert
Made In USA No
Insert/Tool Insert
Insert Type Positive
Coating TiN
Dimensional Specifications
Corner Radius 0.0020 0.05MM
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting Width 0.0390 0.99MM
Insert Size Ic 3
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style JT
