  • TUNGALOY JTDJ2CR1212X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

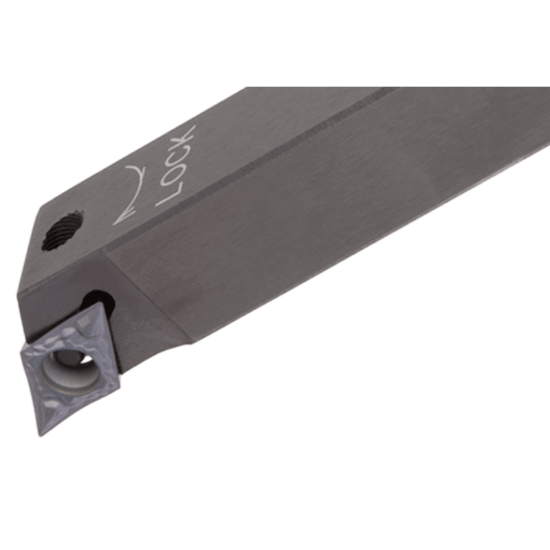

Picture of TUNGALOY JTDJ2CR1212X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JTDJ2CR1212X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JTDJ2CR1212X07

ISO: JTDJ2CR1212X07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6716202
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Swiss, Ext.Turning
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 07 "21"
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 30.0°
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Insert Style DC
