  • TUNGALOY JTDJ2CR1212F11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

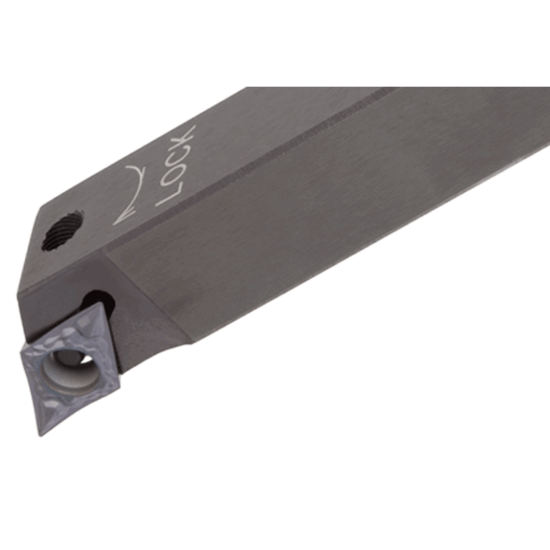

Picture of TUNGALOY JTDJ2CR1212F11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JTDJ2CR1212F11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JTDJ2CR1212F11

ISO: JTDJ2CR1212F11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735529
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.3465 85.00MM
Lead Angle 93°
Insert Size Ic 11 "32"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Right
Inter/Extern External
