  • TUNGALOY JTDJ2CL1616X11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

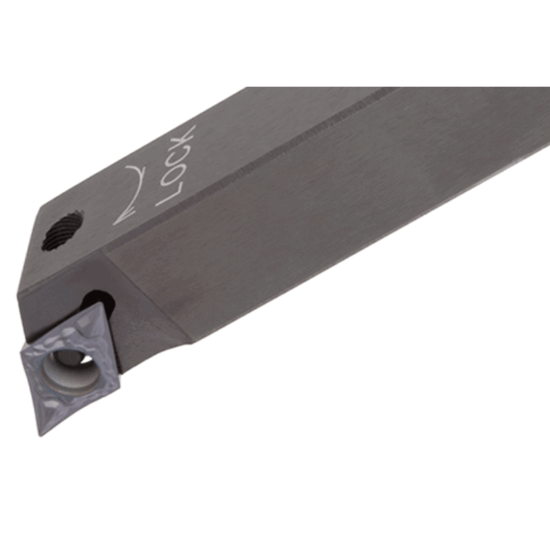

Picture of TUNGALOY JTDJ2CL1616X11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JTDJ2CL1616X11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JTDJ2CL1616X11

ISO: JTDJ2CL1616X11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733977
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Clearance Angle 30.0°
Overall Len 4.7244 120.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Insert Size Ic 11 "32"
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Inter/Extern External
