  • TUNGALOY JTCL2CL1616X09 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

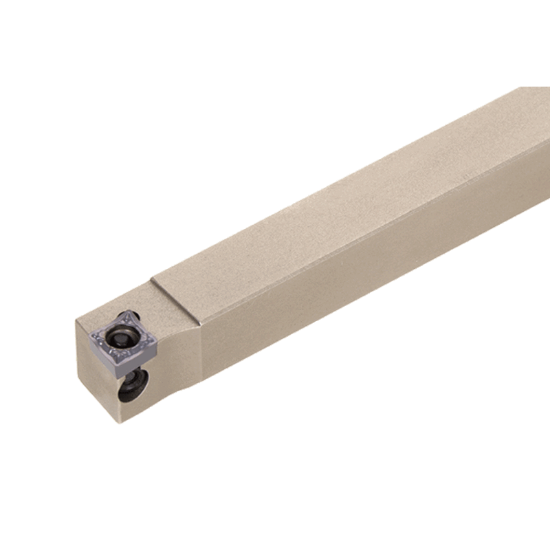

Picture of TUNGALOY JTCL2CL1616X09 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JTCL2CL1616X09 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JTCL2CL1616X09

ISO: JTCL2CL1616X09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733963
Delivery date: 3-5 days
$117.45

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Back clamp toolholder with 95deg approach angle, for positive 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning, Swiss
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 09 "32"
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CC
Inter/Extern External
