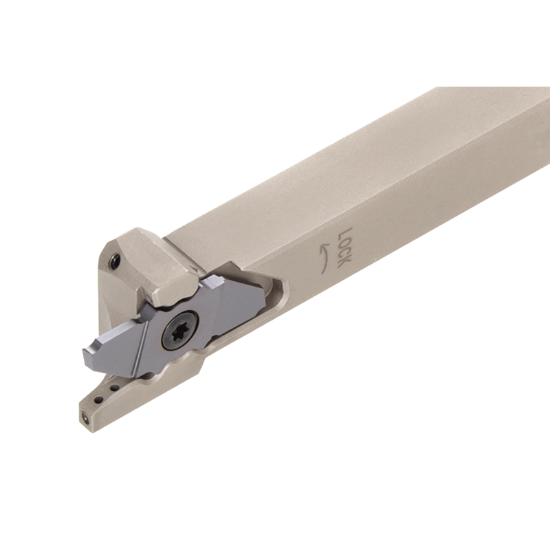

Picture of TUNGALOY JSXXR1616X09-CHP On Edge Cut Off,Grooving Stick Tool Steel Square 0.629 Shank

TUNGALOY JSXXR1616X09-CHP On Edge Cut Off,Grooving Stick Tool Steel Square 0.629 Shank

ANSI: JSXXR1616X09-CHP

ISO: JSXXR1616X09-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6761399
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Parting off tools with high pressure coolant channels and DirectTungJet system for swiss lathes. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting, Swiss
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Style JX
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
