  • TUNGALOY JSWL2XR1616X04-CHP Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

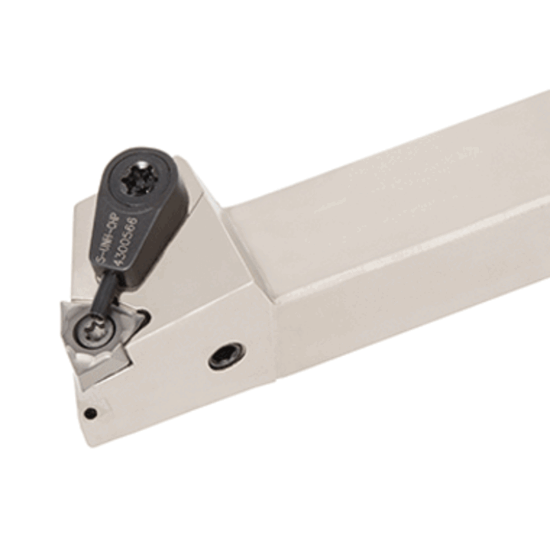

Picture of TUNGALOY JSWL2XR1616X04-CHP Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JSWL2XR1616X04-CHP Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JSWL2XR1616X04-CHP

ISO: JSWL2XR1616X04-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6720294
Delivery date: 3-5 days
$334.65

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholders for WXGU inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 04 "22"
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
Inter/Extern External
Hand R/L Right
