  • TUNGALOY JSWL2XL102 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

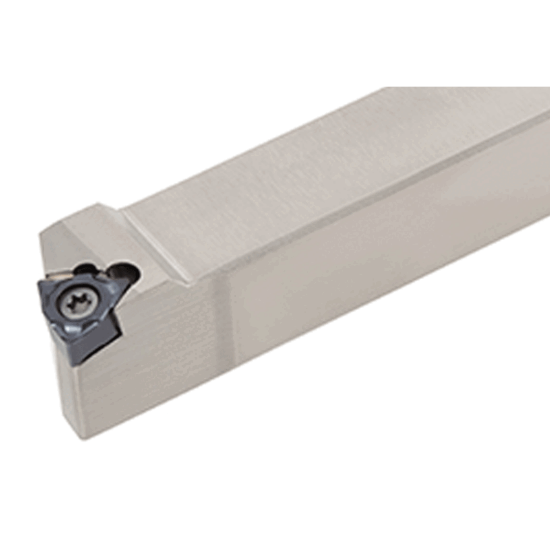

Picture of TUNGALOY JSWL2XL102 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

TUNGALOY JSWL2XL102 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

ANSI: JSWL2XL102

ISO: JSWL2XL102

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712849
Delivery date: 3-5 days
$117.45

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder with 95deg approaach angle, for WXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.7500 120.65MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 04 "22"
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
Hand R/L Left
Inter/Extern External
