  • TUNGALOY JSVNBN1212F11 Swiss Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.472 Shank

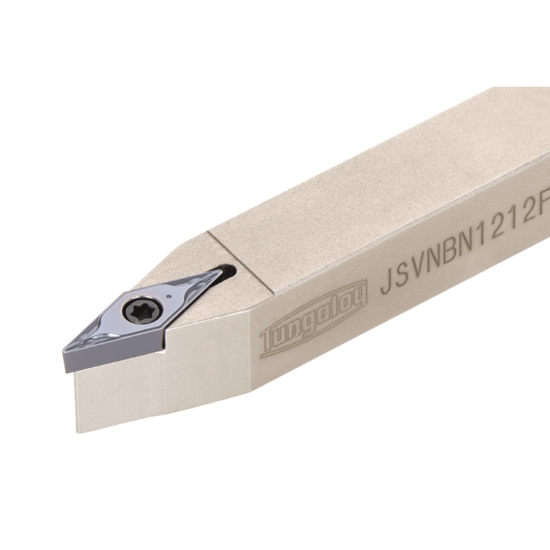

Picture of TUNGALOY JSVNBN1212F11 Swiss Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.472 Shank

TUNGALOY JSVNBN1212F11 Swiss Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.472 Shank

ANSI: JSVNBN1212F11

ISO: JSVNBN1212F11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733990
Delivery date: 3-5 days
$96.50

Important Notes

Posi,V style, 72.5deg Approach

Details

Screw-on clamp toolholder with 62.5deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning, Swiss
Package Size 1
Made In USA No
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Clearance Angle 70.0°
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 72.5°
Overall Len 3.3465 85.00MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VB
