  • TUNGALOY JSVL2PR1616X08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

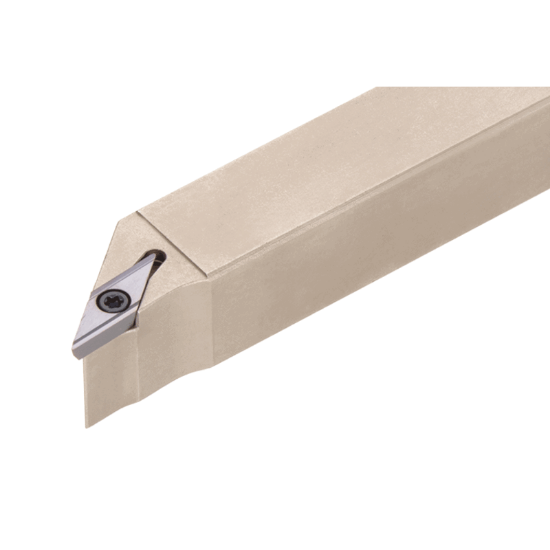

Picture of TUNGALOY JSVL2PR1616X08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JSVL2PR1616X08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JSVL2PR1616X08

ISO: JSVL2PR1616X08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733994
Delivery date: 3-5 days
$101.30

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder with 95deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Overall Len 4.7244 120.00MM
Insert Size Ic 08 "63"
Clearance Angle 45.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VP
