  • TUNGALOY JSVL2PR102 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

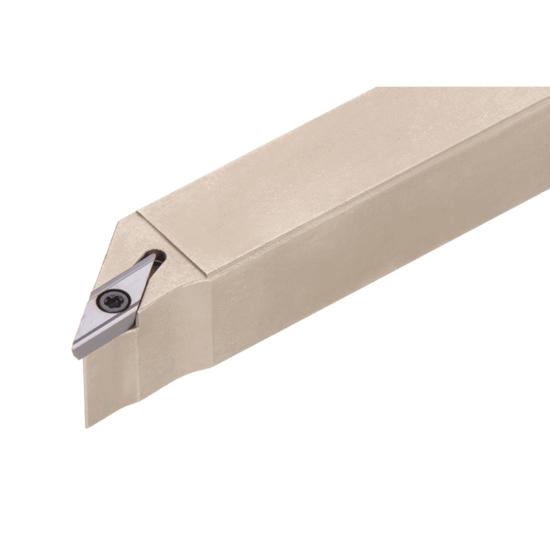

Picture of TUNGALOY JSVL2PR102 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

TUNGALOY JSVL2PR102 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

ANSI: JSVL2PR102

ISO: JSVL2PR102

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6708791
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder with 95deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Clearance Angle 45.0°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Style VP
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
