  • TUNGALOY JSVJXR2525M09 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.984 Shank

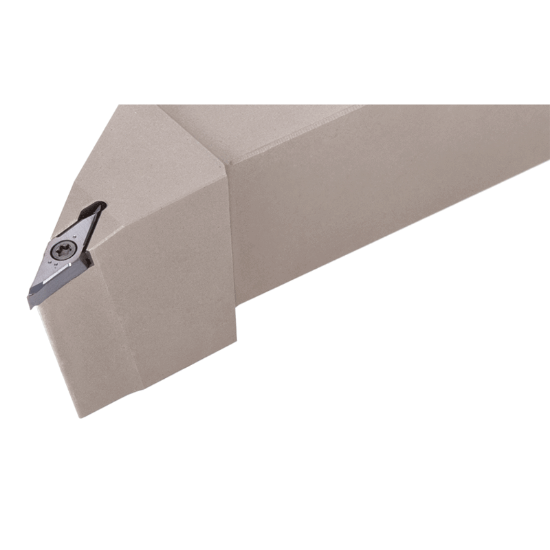

Picture of TUNGALOY JSVJXR2525M09 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY JSVJXR2525M09 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: JSVJXR2525M09

ISO: JSVJXR2525M09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776348
Delivery date: 3-5 days
$150.75

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on toolholder with 93deg approach angle for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Insert Size Ic 09 "73"
Lead Angle 93°
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
