  • TUNGALOY JSVJXR1216X09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

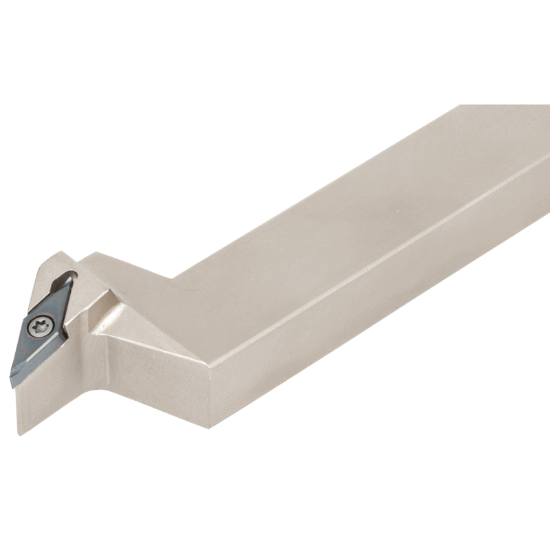

Picture of TUNGALOY JSVJXR1216X09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSVJXR1216X09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSVJXR1216X09-F15

ISO: JSVJXR1216X09-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730827
Delivery date: 3-5 days
$148.90

Important Notes

Posi,J style, 93deg Approach

Details

Stepped-head type Screw-on toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 09 "73"
Clearance Angle 50.0°
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Right
